Root Directories

All data locations are relative to a root directory.

imagingRoot at FNAL is /sdss/data
spectroRoot at FNAL is /sdss/data/spectro -> /data/dp9.a/data/spectro
targetRoot at FNAL is /sdss/data/targetRoot -> /data/dp21.a/data/inchunk_target_v5_4
bestRoot at FNAL is /sdss/data/bestRoot -> /data/dp21.a/data/inchunk_best_v5_4
tilingRoot at FNAL is /sdss/data/tilingRoot -> /opdb/d1/data/tileChunk
csvRoot at FNAL is /sdss/data/csvRoot -> /data/dp23.b/data/csv

Production Directories

Imaging Data Directories

Name:imagingRoot/$run/$rerun where

$run is the run number, format %d
$rerun is the rerun number, format %d

Each $run/$rerun may have the following directories:

astrom -- results of the astrom pipeline
calibChunks -- in $camCol directories,
corr -- in $camCol directories, the corrected frames (fpC)
dplogs -- log files from data processing and quality control
fangs -- in $camCol directories, the fang files
fields -- in $camCol directories, the raw frames
gangs -- the gang files
logs -- parameter files from the telescope
nfcalib -- results of photometric calibration
objcs -- in $camCol directories, outputs of photo: (fpAtlas, fpBIN, fpFieldStat, fpM, fpObjc, psBB, psField)
photo -- plan and parameter files to help run photo pipelines
psFangs -- in $camCol directories, the psFang files
ssc -- plan and parameter files to help run ssc, also contains the known object catalog
sq -- results of the setQuality pipeline
Zoom -- in $camCol directories, the fpC*Z??.jpeg files

Spectro Data Directories

Name for 2d pipeline outputs: spectroRoot/2d_$rerun/$plate where

$rerun is the spectro rerun number, format %d
$plate is the plate, format %04d

Name for 1d pipeline outputs: 1d_$rerun/$plate where

$rerun is the spectro rerun number, format %d
$plate is the plate, format %04d

Each 1d_$rerun/$plate has the following directories:

1d has the spSpec files
gif has the spPlot files

Name for photo measurements of spectro targets: 3d_$rerun/$plate where

$rerun is the spectro rerun number, format %d
$plate is the plate, format %04d

Each 3d_$rerun/$plate has the following directories:

spAtlas-$plate-$mjd-$rerun has the spAtlas files

Directory of clean spectroscopic sample data: ss_$rerun/$plate and ss_tar_$rerun/$plate.tar.gz where

$rerun is the spectro rerun number, format %d
$plate is the plate, format %04d

The plPlugMapM files should be found in 2d_$rerun, 1d_$rerun and ss_$rerun. Last resort, look in spectroRoot/speclog. There the sdReport may be found, as well. There is one directory for each MJD. Note that there can potentially be a different MJD for plugging and observing. You have to look in the header of the spSpec or spPlate files to find the plugfile.

Target Data Directories

Name:targetRoot/stripe$stripe_mu$mu_$skyVersion where $stripe is the stripe number (format %d), $mu is the starting mu (format %6d), and $skyVersion is the sky version (format %d):

skyVersion = 0: targeted sky

Best Data Directories

Name:bestRoot/stripe$stripe_mu$mu_$skyVersion where $stripe is the stripe number (format %d), $mu is the starting mu (format %6d), and $skyVersion is the sky version (format %d):

skyVersion = 1: best sky (better reruns)

Tiling Data Directories

Name:tilingRoot/$stripe$stripe_mu$mu_$skyVersion where $stripe is the stripe number (format %d), $mu is the starting mu (format %6d), and $skyVersion is the sky version (format %d), which is always 0 (targeted sky) for this tiling information.

Imaging CSV Directories

phCSV/ directory - contains the imaging (photo) CSV files. The tables that will be loaded from here are the Chunk, Segment, Field, Mask, ObjMask, PhotoObj, Profile , First, Rosat, and USNO tables. There is a different subdirectory for each skyVersion of the data to be loaded:

target/ directory - contains CSV files for the TARGET (skyVersion = 0) data.

<skyVersion#>-<stripe#>-<last_3_digits_of_startMu>-<last_3_digits_of_endMu>, e.g. 0-42-191-786 : This is the chunk/stripe level directory that contains the individual runs. This level is necessary to allow for the possibility that a given run may overlap more than one chunk.

<run#>/: There is one subdirectory for each run to be loaded. The subdirectory name is the run-number (run#). The files in each run# directory will be named <tablename>-target-<run#>-<rerun#>[_<sequence#>].csv (the sequence number is used if necessary when files get very large), and the following files will be deposited here:

csv_ready: The csv_ready file is a semaphore file indicating that the CSV files for this run are ready to be loaded. This is necessary in case new runs are added while the robot is queueing the existing runs to be loaded, and also for the future when we load runs in parallel.
sqlField-target-<run#>-<rerun#>.csv, e.g. sqlField-target-752-8.csv
sqlFieldProfile-target-<run#>-<rerun#>.csv, e.g. sqlFieldProfile-target-752-8.csv
sqlFirst-target-<run#>-<rerun#>.csv, e.g. sqlFirst-target-752-8.csv
sqlMask-target-<run#>-<rerun#>.csv, e.g. sqlMask-target-752-8.csv
sqlObjMask-target-<run#>-<rerun#>.csv, e.g. sqlAtlas-target-752-8.csv
sqlPhotoObj-target-<run#>-<rerun#>_<seq#>.csv, e.g. sqlPhotoObj-target-752-8_0.csv
sqlPhotoProfile-target-<run#>-<rerun#>_<seq#>.csv, e.g. sqlPhotoProfile-target-752-8_1.csv
sqlRosat-target-<run#>-<rerun#>.csv, e.g. sqlRosat-target-752-8.csv
sqlSegment-target-<run#>-<rerun#>.csv, e.g., sqlSegment-target-752-8.csv
sqlUSNO-target-<run#>-<rerun#>.csv, e.g. sqlUSNO-target-752-8.csv
zoom/: This directory will contain the jpeg zoom files under the subdirectories 1, 2, 3, 4, 5, 6 for each camCol.

csv_ready: The csv_ready file is a semaphore file that tells the robot that the TARGET database is ready to load, i.e. the CSV files are ready to be queued for loading.
sqlChunk-target.csv
sqlTarget-target.csv
sqlTargetInfo-target.csv

best/ directory - contains CSV files for the BEST (skyVersion = 1) data.

<skyVersion#>-<stripe#>-<last_3_digits_of_startMu>-<last_3_digits_of_endMu>, e.g. 1-42-191-169 : This is the chunk/stripe level directory that contains the individual runs. This level is necessary to allow for the possibility that a given run may overlap more than one chunk.

<run#>/: As above, there will be one subdirectory for each run. The files under this directory will be named

csv_ready: The csv_ready file is a semaphore file indicating that the CSV files for this run are ready to be loaded. This is necessary in case new runs are added while the robot is queueing the existing runs to be loaded, and also for the future when we load runs in parallel.
sqlField-best-<run#>-<rerun#>.csv, e.g. sqlField-best-752-7.csv
sqlFieldProfile-best-<run#>-<rerun#>.csv, e.g. sqlFieldProfile-best-752-7.csv
sqlFirst-best-<run#>-<rerun#>.csv, e.g. sqlFirst-best-752-7.csv
sqlMask-best-<run#>-<rerun#>.csv, e.g. sqlMask-best-752-7.csv
sqlObjMask-best-<run#>-<rerun#>.csv, e.g. sqlAtlas-best-752-7.csv
sqlPhotoObj-best-<run#>-<rerun#>_<seq#>.csv, e.g. sqlPhotoObj-best-752-7_0.csv
sqlPhotoProfile-best-<run#>-<rerun#>_<seq#>.csv, e.g. sqlPhotoProfile-best-752-7_1.csv
sqlRosat-best-<run#>-<rerun#>.csv, e.g. sqlRosat-best-752-7.csv
sqlSegment-target-<run#>-<rerun#>.csv, e.g., sqlSegment-best-752-7.csv
sqlUSNO-best-<run#>-<rerun#>.csv, e.g. sqlUSNO-best-752-7.csv
zoom/: This directory will contain the jpeg zoom files under the subdirectories 1, 2, 3, 4, 5, 6 for each camCol.

csv_ready: The csv_ready is a semaphore file that tells the robot that the BEST database is ready to load, i.e. the CSV files are done.
sqlChunk-best.csv, containing the chunk data.

runs/ directory - contains CSV files for the RUNS (skyVersion =15) data.

<run#>-<rerun#>/: This will be the chunk (stripe) level subdirectory. The individual run will be under this directory. This is for consistency with the directory structure for target and best.

<run#>/: There will be one subdirectory for each run to be loaded. There will be no masks for the runs skyversion. The files in this directory will be:

csv_ready: This is a semaphore file indicating that the CSV files for this run are ready to be queued for loading. This is to prevent premature loading of a run before the CSV generation is finished.
sqlField-runs-<run#>-<rerun#>.csv, e.g. sqlField-runs-1336-16.csv
sqlFieldProfile-runs-<run#>-<rerun#>.csv, e.g. sqlFieldProfile-runs-1336-16.csv
sqlFirst-runs-<run#>-<rerun#>.csv, e.g. sqlFirst-runs-1336-16.csv
sqlObjMask-runs-<run#>-<rerun#>.csv, e.g. sqlAtlas-runs-1336-16.csv
sqlPhotoObj-runs-<run#>-<rerun#>_<seq#>.csv, e.g. sqlPhotoObj-runs-1336-16_0.csv
sqlPhotoProfile-runs-<run#>-<rerun#>_<seq#>.csv, e.g. sqlPhotoProfile-runs-1336-16_1.csv
sqlRosat-runs-<run#>-<rerun#>.csv, e.g. sqlRosat-runs-1336-16.csv
sqlSegment-target-<run#>-<rerun#>.csv, e.g., sqlSegment-runs-1336-16.csv
sqlUSNO-runs-<run#>-<rerun#>.csv, e.g. sqlUSNO-runs-1336-16.csv
zoom/: This directory will contain the jpeg zoom files under the subdirectories 1, 2, 3, 4, 5, 6 for each camCol.

csv_ready: The csv_ready file is a semaphore file that tells the robot that the RUNS database is ready to load, i.e. the CSV files are ready to be queued for loading.
sqlChunk-runs.csv, containing the chunk data if applicable.

log/: The log directory - this is the default location for the photo log and error files.

Spectro CSV Directories

spCSV/ directory - contains the spectro CSV files. The subdirectories below this level are:

plates/: The data directory containing the subdirectories for individual spectro runs:

<year>-<month>-<day>-<hour>, e.g. 2002-11-19-1300 : Each such directory contains an individual spectro run. This level is necessary to allow for the possibility that there may be more than one run. This is the data directory containing the actual CSV files:

csv_ready: This is a semaphore file indicating that the CSV files for this plate run are ready to be queued for loading. This is to prevent premature loading of a run before the CSV generation is finished.
sqlPlateX.csv - the data for the PlateX table.
sqlSpecObjAll.csv - the data for the SpecObjAll table.
sqlSpecLineAll.csv - the data for the SpecLineAll table.
sqlSpecLineIndex.csv - the data for the SpecLineIndex table.
sqlELRedshift.csv - the data for the ELRedshift (emission-line redshifts) table.
sqlHoleObj.csv - the data for the HoleObj table.
sqlXCRedshift.csv - the data for the XCRedshift (cross-correlation redshifts) table.

csv_ready: The csv_ready a semaphore file that tells the robot that the spectro data is ready to load, i.e. the CSV files are ready to be queued for loading.

log/: The log directory - this is the default location for the spectro log and error files.

Tiling CSV Directories

tiCSV/ directory - contains the tiling CSV files. The subdirectories below this level are:

tiles/: The data directory containing the subdirectories for individual tiling runs:

<tileRun#>-<year>-<month>-<day>-<hour>, e.g. 10-2003-01-8-1800 : Each such directory contains an individual tiling run. This level is necessary to allow for the possibility that there may be more than one run. The files in each such directory are:

csv_ready: This is a semaphore file indicating that the CSV files for this tiling run are ready to be queued for loading. This is to prevent premature loading of a run before the CSV generation is finished.
sqlTile-<tileRun#>.csv - the data for the Tile table.
sqlTiledTarget-<tileRun#>.csv - the data for the TiledTarget table.
sqlTilingGeometry-<tileRun#>.csv - the data for the TilingGeometry table.
sqlTilingInfo-<tileRun#>.csv - the data for the TilingInfo table.
sqlTilingRegion-<tileRun#>.csv - the data for the TilingRegion table.

csv_ready: The csv_ready a semaphore file that tells the robot that the tiling data is ready to load, i.e. the CSV files are ready to be queued for loading.

log/: The log directory - this is the default location for the tiling log and error files.

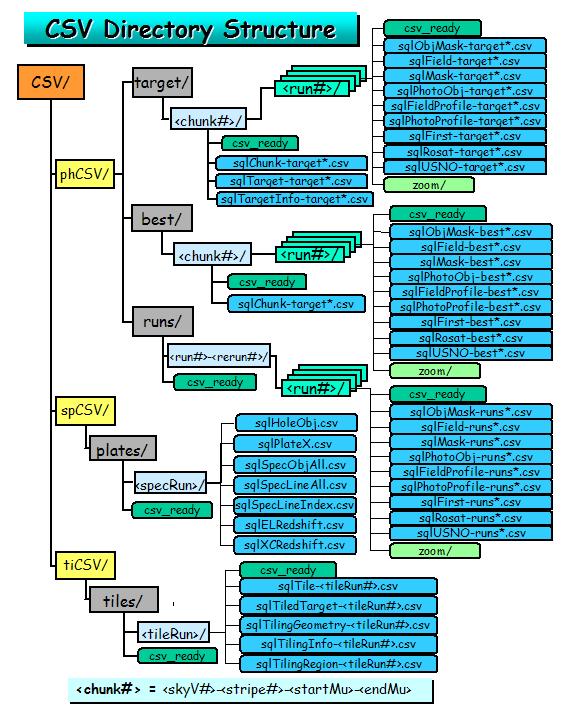

Figure 1. The directory structure layout for the CSV files.
